- Designed to seal most polyolefin, polyethylene, and PVC shrink films
- 25” wide hot knife seal provides a consistent “bulls-eye”closure
- Upper and lower powered film unwind for smooth feed of film
- All-welded main frame from ¼” cold rolled steel for durability
- 12” product pass through height accommodates 11” tall product
- Bases supplied with casters for easy transport

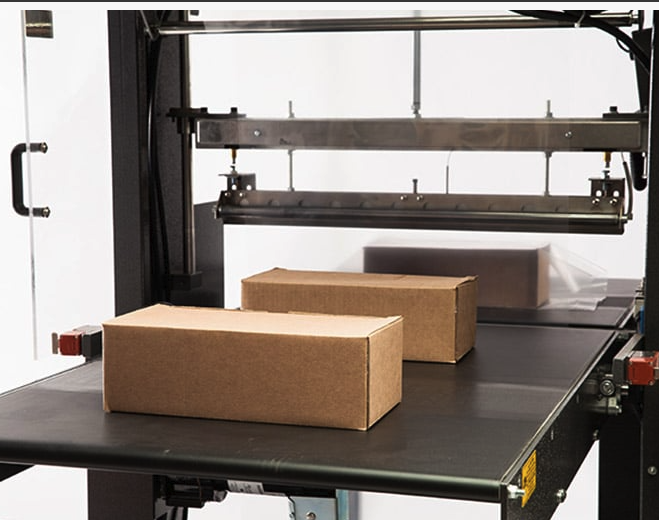

- Reliable product transfer between infeed and exit conveyor
- Soft start infeed and outfeed conveyors to reduce product shifting
- Fixed lower seal bar provides a clean consistent seal and accommodates random height products
- Automatic seal system with pneumatic hold for consistent pressure
- Self tracking conveyor belt and product indexing
- 34.75” conveyor height
- Siemens PLC touchscreen with full color HMI
- Flexibility for fully automatic or single product operation

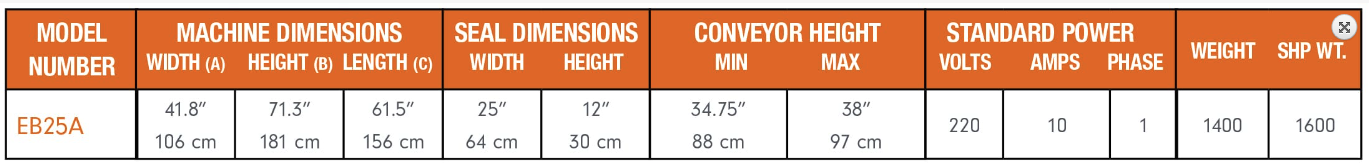

- Small footprint – 61.5”L x 41.8”W x 71.3”H
- Durable custom two-part epoxy finish resists scratching
- 25” max film width
- 14” max film OD
- 220V standard; optional 480V
- Requires 60 psi; 3.5 cfm
- Easy to use design

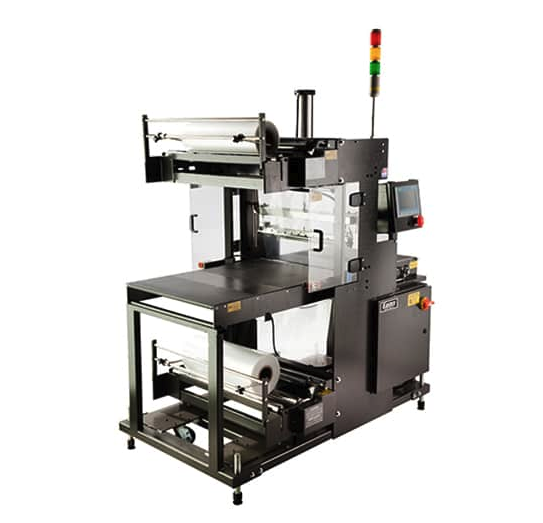

EB25A SERIES AUTOMATIC BUNDLER
EASTEY’s EB25A Automatic Bundler
EASTEY, a trusted name in the shrink packaging industry for over 25 years, consistently delivers reliable performance, offering the high-quality features typically found in more expensive machines. This bundler is designed to provide effective sealing for a wide range of films, including polyolefin, polyethylene, and PVC.
Built with durability in mind, featuring expertly welded frames made from ¼” cold rolled steel. They are engineered to withstand the rigors of daily use in various bundling applications. Each bundler uses two rolls of single wound film mounted on the same side, along with upper and lower power film unwinds, ensuring ease of operation.
Features

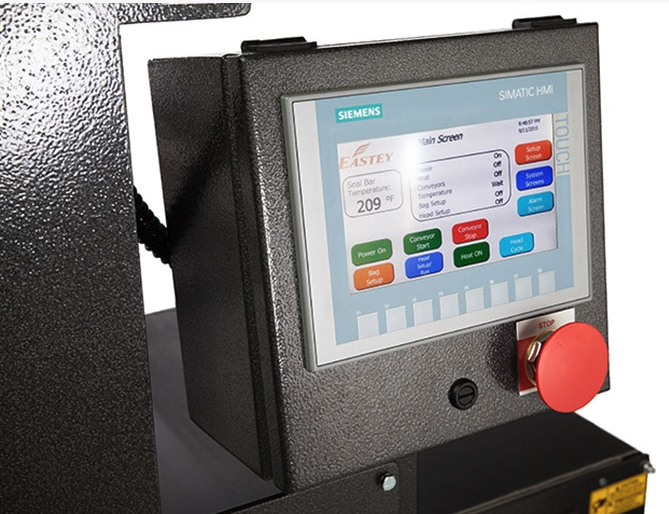

Color Screen
Color PLC touchscreen features simple menus for easy operation, and can be password protected if needed.
Soft Start
Soft start infeed and outfeed conveyors reduce product shifting.

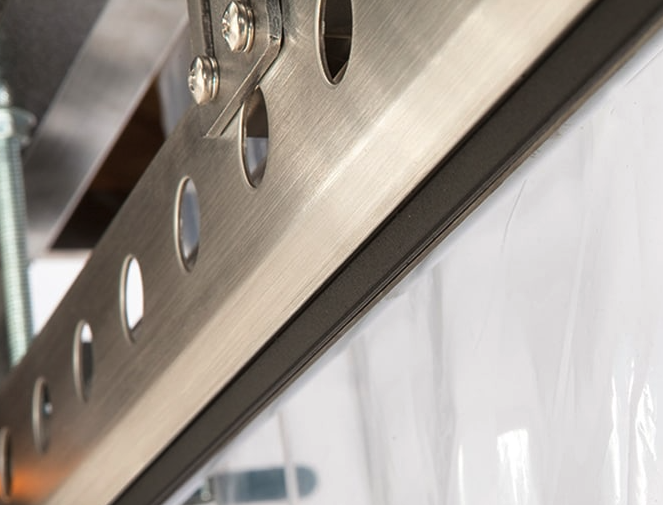

25" Seal Bar
The fixed lower seal bar provides a clean consistent seal and accommodates random height products. Hot knife seal bar provides positive sealing on a wide varity of films.
